YGH30 Grade Cemented Carbide Rollers for Cold Rolling Ribbed Wire
The most popular grade is YGH30, we can make any grade as per customer's requirement.
The rolls are primarily applied in high speed wire line, Knocks three roll mill, seamless pipe stretch reducing mill, three dimensional rolls for cold-rolled ribbed steel bar, and composite roll for hot-rolled bar screw thread steel etc.
Samples:
Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
Sample lead time: 15 days around with existing mould.
Mould time: 20-65 days depends on detailed drawing and requirement.
Production lead time: 15-90 days depends on mould and material
Shipment:
For small order, Express will be the best. It takes only 3-5 days after we sent via TNT, Fedex or DHL. The freight can be to collect via your express company account or prepaid by us.
For bulk order, sea ship way is best but take longer time.
For urgent orders, we suggest via air to airport or by Express send to your door.
| Blank size with the tolerance(mm): |
| Dimension and Tolerance mm |
| D | Tolerance | d | Tolerance | H | Tolerance |
| <=125 | +0.5~+1.8 | <=90 | -1.5~-0.5 | <=20 | +0.5~+1.5 |
| >125~180 | +0.5~+2.5 | >90~95 | -1.5~-0.5 | >20 | +0.5~+2.0 |
| >180~250 | +0.5~+2.8 | >95 | -2.0~-0.5 | --- | |
| >250 | +0.5~+3.5 | ---- | --- | --- | |
| Finished size with the tolerance(mm): |
| Dimension and Tolerance mm |
| OD | Tolerance | ID | Tolerance | H | Tolerance |
| <=125 | +/- 0.015 | <=90 | 0.0/+0.02 | <=20 | +/- 0.01 |
| >125~180 | >90~95 | >20 |
| >180~250 | >95 | --- |
| >250 | ---- | --- |
| Finished size (mm): |
| Radial run-out of groove | Radial run-out of periphery | End face runout | Surface parallelism | Inner hole
cylindricity |
| 0.013 | 0.013 | 0.01 | 0.01 | 0.01 |
| Avaliable Dimension: |
| Type | | Dimension | |
| D(mm) | d(mm) | H(mm) |
| HR-156×94×70 | 156 | 92 | 62 |
| HR-156×87×62 | 156 | 87 | 61 |
| HR-158.8×87.32×62 | 158.8 | 87.32 | 62 |
| HR-170.66×95×70 | 170.66 | 95 | 70 |
| HR-170.66×95×57.35 | 170.66 | 95 | 57.35 |
| HR-180×87.32×72 | 180 | 87.32 | 72 |
| HR-210.5×120.65×72 | 228.3 | 120.65 | 72 |
| HR-212 ×120 ×60 | 212 | 120 | 60 |
| HR-228.3×126×72 | 228.3 | 126 | 72 |
| HR-228×135×72 | 228 | 135 | 72 |
| HR-228×130×72 | 228 | 130 | 72 |
| HR-228.34×130×44.476 | 228.34 | 130 | 44.476 |
| HR-285×160×95 | 285 | 160 | 95 |
| HR-285×160×70 | 285 | 160 | 70 |
| HR-300×160×70 | 300 | 160 | 70 |
| Type | | Dimension | |
| D(mm) | d(mm) | H(mm) |
| CR-270×190×30 | 270 | 90 | 30 |
| CR-250×210×30 | 250 | 210 | 30 |
| CR-200×90×20 | 200 | 90 | 20 |
| CR-180×95×18 | 180 | 95 | 18 |
| CR-180×125×25 | 180 | 125 | 25 |
| CR-167×55×25 | 167 | 55 | 25 |
| CR-160×90×15 | 160 | 90 | 15 |
| CR-150×90×15 | 150 | 90 | 15 |
| CR-150×90×20 | 150 | 90 | 20 |
| CR-140×90×15 | 140 | 90 | 15 |
| CR-140×90×15 | 140 | 90 | 15 |
| CR-125×82×15 | 125 | 82 | 15 |
| CR-125×82×20 | 125 | 82 | 20 |
Wire RangeΦ
(mm) | OutsideΦ
(mm) | InsideΦ
(mm) | Thickness
(mm) |
| 4-8.5 | 123 | 82 | 15 |
| 9-12 | 123 | 82 | 20 |
| 4-8.5 | 125 | 90 | 15 |
| 9-12 | 125 | 90 | 20 |
| 4-8.5 | 140 | 90 | 15 |
| 9-12 | 140 | 90 | 20 |
| 4-8.5 | 150 | 90 | 15 |
| 9-12 | 150 | 90 | 20 |
| 4-8.5 | 160 | 90 | 15 |
| 9-12 | 160 | 90 | 20 |
| 4-8.5 | 220 | 130 | 15 |
| 9-12 | 220 | 130 | 20 |
We produce and supply various sizes of carbide roller blanks and finish grinding rollers.
Lead Time:
| Quantity(Pieces) | 1-10 | 11 - 50 | 51 - 100 | >100 |
| Est. Time(days) | 30 | 40 | 60 | To be negotiated |
Product Tags:
|
|

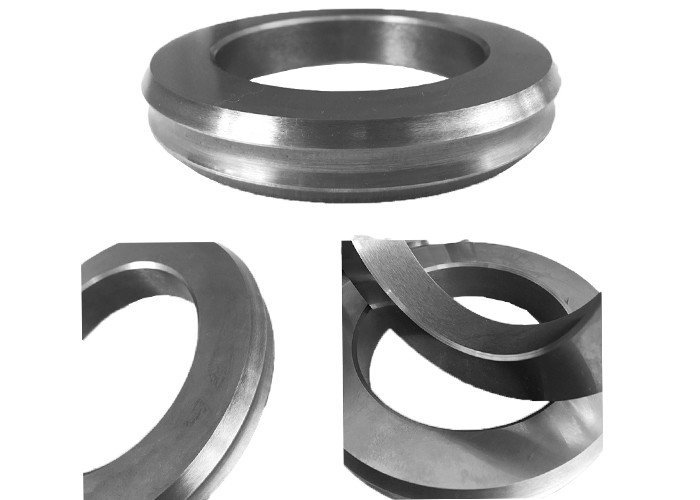

YGH30 Grade Tungsten Carbide Roll Rings For Guiding Steel / Iron Wire Images
|
